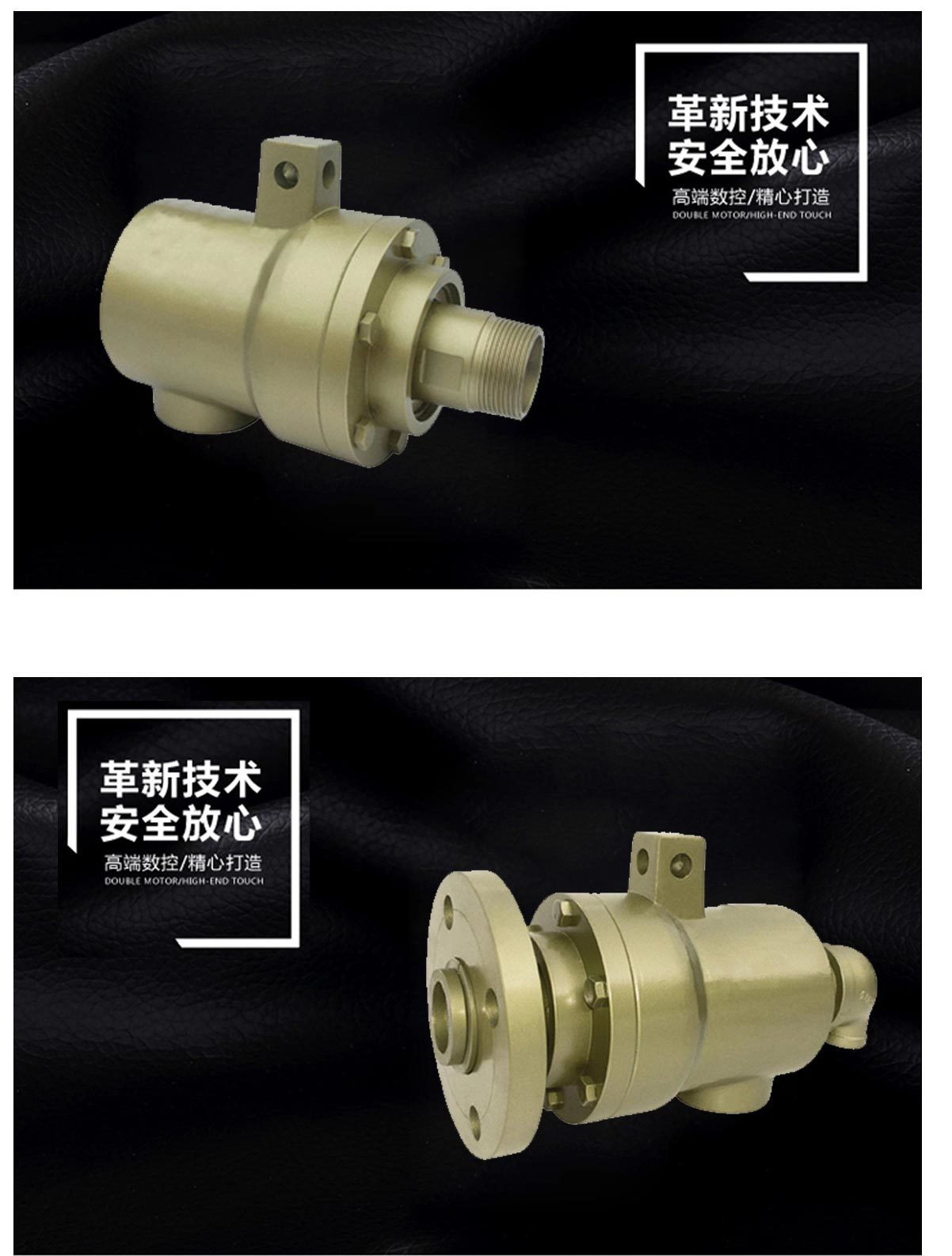

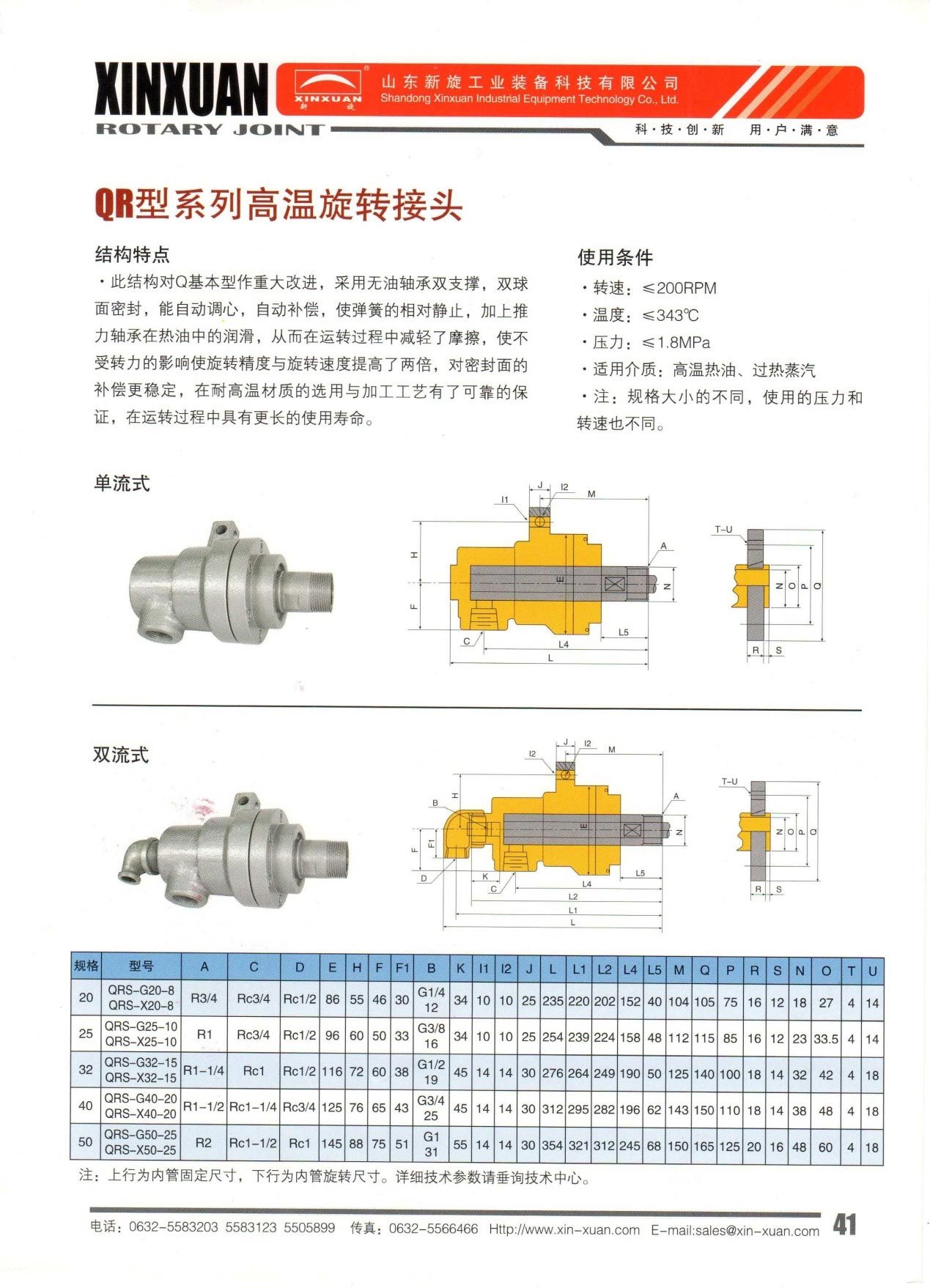

QR type series high temperature rotary joint
- Description
-
Product introduction of QR type rotary joint:
This structure of QR type rotary joint is a major improvement to the Q basic type. It adopts oil-free bearing double support, double spherical seal, can automatically adjust the center, automatically compensate, make the spring relatively static, and the thrust bearing is lubricated in hot oil, thus Reduce the friction during operation, so that the rotation accuracy and rotation speed are increased by 2 times without being affected by the force, and the compensation of the sealing surface is more stable. The selection and processing technology of high temperature resistant materials are guaranteed. Higher service life.
Use conditions of QR type rotary joint:
Speed: ≤200RPM
Temperature: ≤343℃
Pressure: ≤1.8MPa
Applicable medium: high temperature hot oil, superheated steam,
Note: The pressure and speed used are also different for different specifications
Shandong Xinxuan Industrial Equipment Technology Co., Ltd.
Xinxuan Company is a company engaged in the development of pipelines and pipeline connectors. The leading products include rotary joints, metal hoses, warehouse pumps, cable hoses (plastic-coated pipes), compensators, quick connectors, siphons, flowmeters, sealing rings and other supporting products. Widely used in steel, paper, rubber, plastic, petroleum, chemical, building materials, textile printing and dyeing, chemical fiber, drying, packaging, glass, tobacco, food, medicine and other industries.
