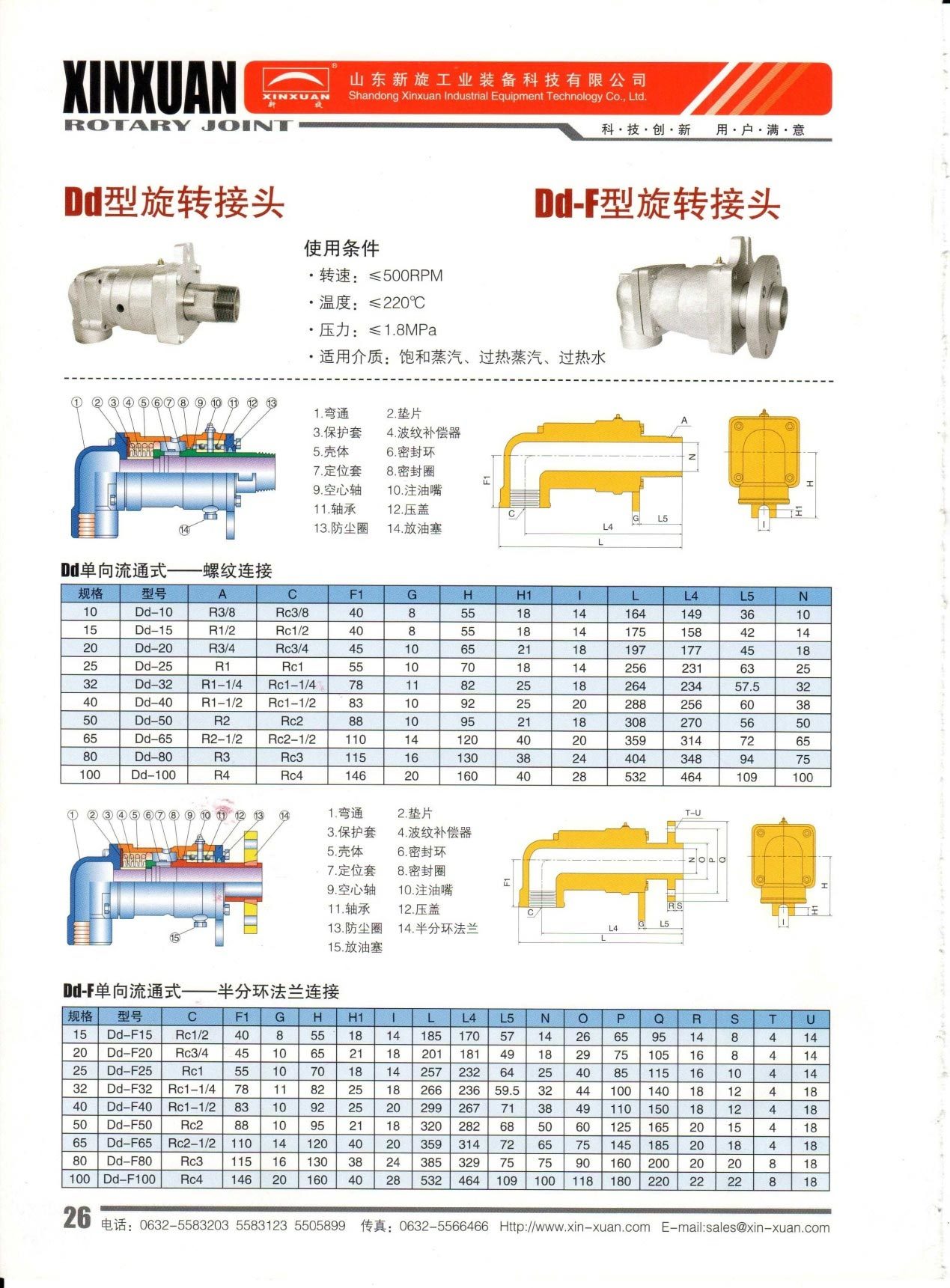

Dd type rotary joint
- Description
-
Dd type rotary joint product introduction:
The hollow shaft is connected to the roller or the roller through the thread or flange. It is the main rotating part and moves synchronously with the equipment. The sealing ring, the hollow shaft and the bellows compensator together form a floating double-end seal friction pair, which is beneficial to reduce the disadvantages of poor sealing caused by poor concentricity of the equipment. The seal ring is made of impregnated carbon graphite, which has good self-lubricating properties, thereby reducing friction and wear and increasing service life; as the seal ring wears, the corrugated compensator can be compensated at any time by the pressure of the spring. The use of the bearing plays a supporting role on the one hand, and at the same time improves the rotation accuracy and reduces the friction torque. In addition, an observation hole is provided on the housing, through which the wear and sealing condition of the sealing ring can be observed at any time. Regularly add lithium-based grease when the temperature is high.
Conditions of Use:
Speed: ≤500RPM
Temperature: ≤220℃
Pressure: 1.8MPa
Applicable medium: saturated steam, superheated steam, superheated water
Shandong Xinxuan Industrial Equipment Technology Co., Ltd.
Xinxuan Company is a company engaged in the development of pipelines and pipeline connectors. The leading products include rotary joints, metal hoses, warehouse pumps, cable hoses (plastic-coated pipes), compensators, quick connectors, siphons, flowmeters, sealing rings and other supporting products. Widely used in steel, paper, rubber, plastic, petroleum, chemical, building materials, textile printing and dyeing, chemical fiber, drying, packaging, glass, tobacco, food, medicine and other industries.
